Description guide for White Corner Joints: 1st dimension to fit board size - 2nd external short leg - 3rd external long leg - 4th thickness | M = metres, mm = millimetres.

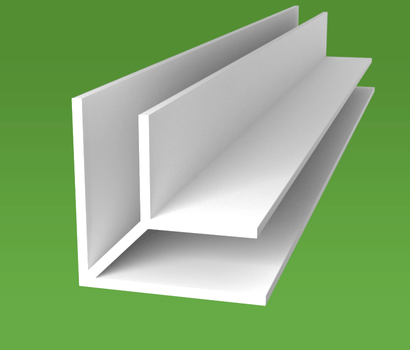

White PVC Corner Joint profiles fit into boards which are positioned at a 90 degree angle. These profiles can hide and protect cut ends of materials such as plywood, Foamex and glass. This white joining profile is universal as it can be used with either internal or external corner joints. Available in different sizes and also available as black corner joint.

Description	Product Code	Material	Colour	75 metres per pack	Price per pack	Packs required
CORNER JOINT 3-5mm x 18mm x 25mm x 1.0mm	CO3518251W	External Grade Rigid PVC	White	25 X 3M	£94.34	£94.34 - +
CORNER JOINT 6-8mm x 18mm x 30mm x 1.5mm	CO68183015W	External Grade Rigid PVC	White	25 X 3M	£152.46	£152.46 - +
CORNER JOINT 9-11mm x 18mm x 32mm x 1.5mm	CO911183215W	External Grade Rigid PVC	White	25 X 3M	£167.53	£167.53 - +
CORNER JOINT 12-14mm x 18mm x 35mm x 1.5mm	CO1214183515W	External Grade Rigid PVC	White	25 X 3M	£184.75	£184.75 - +
CORNER JOINT 15-17mm x 18mm x 39mm x 1.5mm	CO1517183915W	External Grade Rigid PVC	White	25 X 3M	£189.05	£189.05 - +
CORNER JOINT 18-20mm x 18mm x 41mm x 1.5mm	CO1820184115W	External Grade Rigid PVC	White	25 X 3M	£217.72	£217.72 - +

Board corner joints

Our PVC corner joint sections, which are also known as board corner joints, are designed to fit into boards which are positioned at a 90 degree angle. As well as providing support, board corner joints can hide and protect cut ends of boards and panels. Materials that can be pushed into the profile include foamex, plywood, glass and other commonly used materials.

Our universal corner joints are suitable to be used as both internal and external corner joints.

Who uses plastic corner joints?

Typically customers from the signage, building, shopfitting, display and exhibitions stand industries use plastic corner joints. However, as with all our plastic profiles, we have customers from a wide range of sectors. Although these plastic joining profiles are not structural, they give a clean appearance when covering 90 degree joints.

Plastic corner joints made in the UK

Our PVC plastic corner joints are made at our factory in the UK. Our extruded profiles are high quality products and we are accredited with the British Quality Standard ISO 9001:2015 which gives peace of mind to our customers.

Sizing and dimensions of corner joint trim

1st dimension (mm) is the board size
2nd dimension (mm) is the external short leg
3rd dimension (mm) is the external long leg
4th dimension (mm) is the thickness
As an example, CORNER JOINT 18-20mm x 18mm x 41mm x 1.5mm is designed to use with 18-20mm boards, the legs are 18mm and 41mm and the thickness of the profile is 1.5mm.
