Description for white H Sections: 1st internal Depth 'Board Size' - 2nd external widths - 3rd thickness | M = metres, mm = millimetres

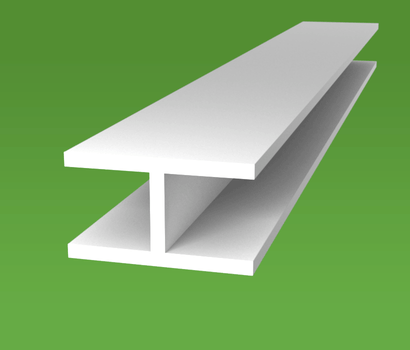

This white plastic H joining section profile is often used for covering & joining boards & partition panels. Both sides of this white joinging profile have equal legs. There is a similar profile which has unequal legs. Also we offer a two-part H interlocking profile. This white H trim is manufactured in the UK and is made from rigid PVC. Also available as black H joining section.

Description	Product Code	Material	Colour	75 metres per pack	Price per pack	Packs required
H SECTION 2mm x 10mm x 1.5mm	H21015W	External Grade Rigid PVC	White	25 X 3M	£31.67	£31.67 - +
H SECTION 2mm x 25mm x 1.5mm	H22515W	External Grade Rigid PVC	White	25 X 3M	£73.12	£73.12 - +
H SECTION 3mm x 10mm x 1.5mm	H31015W	External Grade Rigid PVC	White	25 X 3M	£31.50	£31.50 - +
H SECTION 3mm x 25mm x 1.5mm	H32515W	External Grade Rigid PVC	White	25 X 3M	£69.32	£69.32 - +
H SECTION 4mm x 10mm x 1.5mm	H41015W	External Grade Rigid PVC	White	25 X 3M	£33.26	£33.26 - +
H SECTION 4mm x 25mm x 1.5mm	H42515W	External Grade Rigid PVC	White	25 X 3M	£76.91	£76.91 - +
H SECTION 5mm x 25mm x 1.5mm	H52515W	External Grade Rigid PVC	White	25 X 3M	£85.29	£85.29 - +
H SECTION 6mm x 13.5mm x 1.5mm	H613515W	External Grade Rigid PVC	White	25 X 3M	£44.65	£44.65 - +
H SECTION 6mm x 25mm x 1.5mm	H62515W	External Grade Rigid PVC	White	25 X 3M	£81.50	£81.50 - +
H SECTION 9mm x 18mm x 2mm	H9182W	External Grade Rigid PVC	White	25 X 3M	£79.60	£79.60 - +
H SECTION 10mm x 20mm x 1.5mm	H102015W	External Grade Rigid PVC	White	25 X 3M	£64.41	£64.41 - +
H SECTION 12mm x 23mm x 2.3mm	H122323W	External Grade Rigid PVC	White	25 X 3M	£127.25	£127.25 - +
H SECTION 13mm x 25mm x 2mm	H13252W	External Grade Rigid PVC	White	25 X 3M	£113.76	£113.76 - +
H SECTION 15mm x 30mm x 1.5mm	H153015W	External Grade Rigid PVC	White	25 X 3M	£109.96	£109.96 - +
H SECTION 18mm x 20.5mm x 2mm	H182052W	External Grade Rigid PVC	White	25 X 3M	£89.09	£89.09 - +
H SECTION 20mm x 50mm x 3mm	H20503W	External Grade Rigid PVC	White	25 X 3M	£342.10	£342.10 - +
H SECTION 25mm x 30mm x 2mm	H25302W	External Grade Rigid PVC	White	25 X 3M	£172.48	£172.48 - +

H section joining strips demonstration

Watch a short video about H section joining strips.

H section joining strips explanation

This profile is shaped like a capital H which is where it gets its name, and a section is another name for an extrusion. H section joining strips are commonly used as a plastic joining strip for hardboard, glass, partitions and other types of panel.
The first dimension is the depth of the board you are inserting into the trim, the second dimension is the external width of both legs, and the third dimension is the thickness. An example is H Section 10mm x 20mm x 1.5mm which is designed for hardboard of 10mm with external legs of 20mm and a thickness of 1.5mm.

Three types of plastic H section

We offer three different types of plastic H section trims:

Equal plastic H trim has both external legs being the same dimension.
Unequal plastic H trim has one external leg or flange longer than the other which offers greater support.
Interlocking plastic H trim is a two-part design consisting of a base trim and a top trim which results in a plastic H trim when they are used together.

If in doubt on which profile is right for you, contact us to request samples of plastic H section free of charge.

What are H section joining strips made from?

Every rigid profile, including the rigid H sections, on our online shop is made from an external grade rigid PVC which means plastic H sections can be used both outside and inside.

Plastic H Sections in different colours

The plastic H trim which we offer in our stock range is available in the colours white and black. For plastic H joining strips in different colours contact us for a custom production quote.
