Description guide for plastic F joining section: 1st internal gap - 2nd external long leg - 3rd internal short legs - 4th thickness | M = metres, mm = millimetres
Plastic F profiles are often used as shadow gap to create a recess set into the surrounding wall. Also used as F joining section, soffit F trim, gap cover, end stop bead and edging trim.
F profile provides a receiving channel to hide the ends of panels.
| Description | Product Code | Material | Colour | 75 metres per pack | Price per pack | Packs required |
|---|---|---|---|---|---|---|
F SECTION 6mm x 40mm x15mm x 2mm  | FS640152W | External Grade Rigid PVC | White | 25 X 3M | £152.67 | £152.67 |
| F SECTION 6mm x 40mm x15mm x 2mm | FS640152B | External Grade Rigid PVC | Black | 25 X 3M | £152.67 | £152.67 |
| F SECTION 10mm x 33mm x10mm x 1.5mm | FS10331015W | External Grade Rigid PVC | White | 25 X 3M | £84.66 | £84.66 |
| F SECTION 10mm x 33mm x10mm x 1.5mm | FS10331015B | External Grade Rigid PVC | Black | 25 X 3M | £84.66 | £84.66 |
| F SECTION 12mm x 29mm x12mm x 2.5mm | FS12291225W | External Grade Rigid PVC | White | 25 X 3M | £130.94 | £130.94 |
| F SECTION 12mm x 29mm x12mm x 2.5mm | FS12291225B | External Grade Rigid PVC | Black | 25 X 3M | £130.94 | £130.94 |

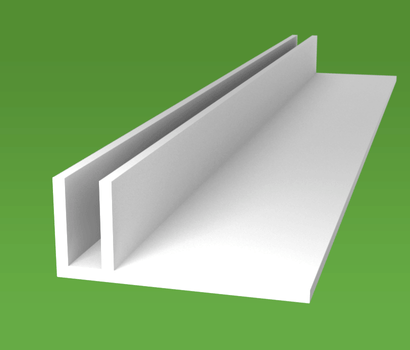

This profile gets its name because it is shaped like a capital F letter.
Plastic F profile can be bought in 75 metre packs, each pack contains 25 X 3 metre lengths.
The material is an external grade rigid PVC, which is also known as uPVC. Therefore F profile can be used either inside or outside. The colours available are white and black.
F profile is often used as a shadow gap, creating a recess around windows, doors, ceilings and other applications. The recess is set into the surrounding wall and the F profile creates a neat finish for your project.
F profile is sometimes used as an edging trim ensuring a tidy finish. The stalk, or long leg, can be fixed to a wall.
F profile can be used as part of soffit applications, and is sometimes referred to as soffit F trim.
Boards or glazing can be fitted into the F profile, the F profile provides a receiving channel to hide ends of panels.
Also used as F joining section, gap cover and an end stop bead.
Our dimensions for plastic F profiles are shown in millimetres:
1st dimension - internal gap (mm)
2nd dimension - external long leg (mm)
3rd dimension - external short legs, which are equal in length (mm)
4th dimension – thickness (mm)
For example F SECTION 10mm x 33mm x10mm x 1.5mm is designed to fit a 10mm board (or provide a 10mm recess), the long leg is 33mm, the two short legs are 10mm (measured externally) and the profile is 1.5mm thick.
The above prices are net of VAT and Delivery, which will be shown in the Shopping Basket
